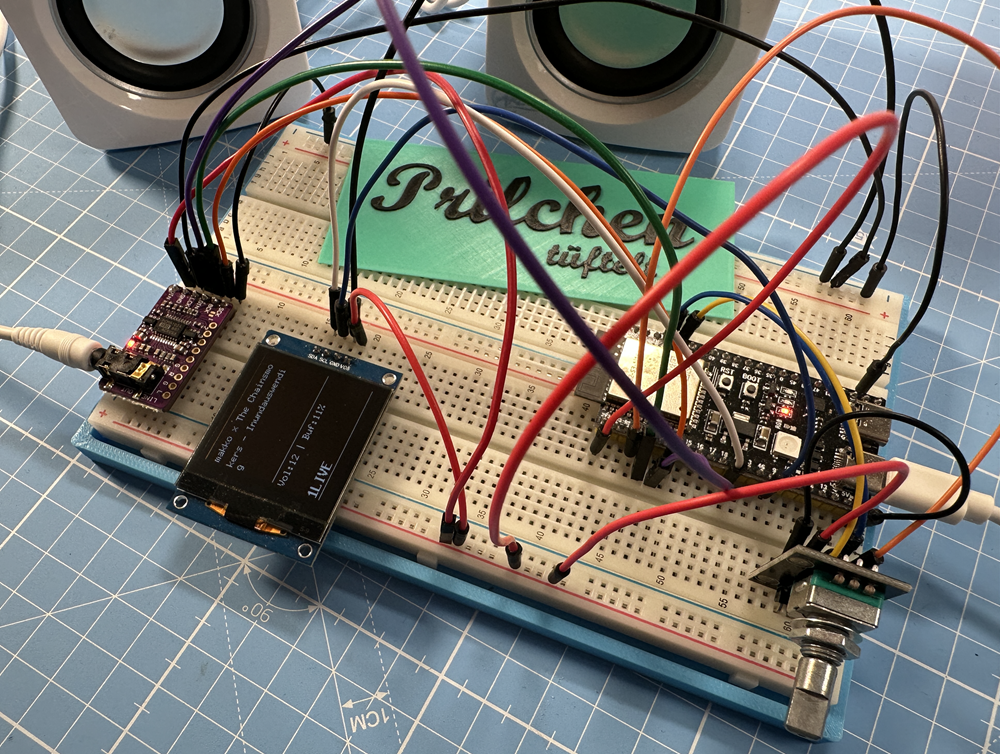

Webradio V4: ESP32-S3 trifft PCM5102 Hi-Fi Audio mit Anzeige Interpret und Titel

#include <WiFi.h>
#include <Audio.h>
#include <U8g2lib.h>
#include <RotaryEncoder.h>
#include <Wire.h>

#define WIFI_SSID "xxx"
#define WIFI_PASS "xxx"
#define OLED_SDA 8
#define OLED_SCL 9
#define ENCODER_CLK 1
#define ENCODER_DT 4
#define ENCODER_SW 2

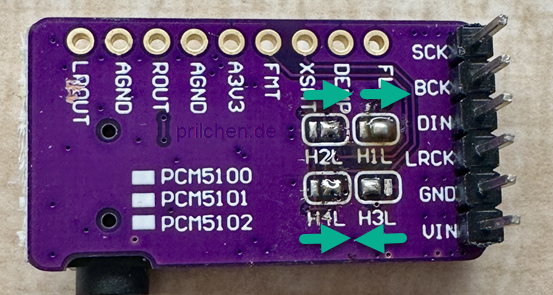

#define I2S_BCK 7
#define I2S_DOUT 5
#define I2S_WS 6

// --- STATIONEN LISTE ---
struct Station { const char* name; const char* url; };

Station stationList[] = {
  {"WDR 4", "http://wdr-wdr4-live.icecast.wdr.de/wdr/wdr4/live/mp3/128/stream.mp3"},
  {"1LIVE", "http://wdr-1live-live.icecast.wdr.de/wdr/1live/live/mp3/128/stream.mp3"},
  {"Deutschlandfunk", "http://st01.dlf.de/dlf/01/128/mp3/stream.mp3"},
  {"Antenne Bayern", "http://stream.antenne.de/antenne/stream/mp3"},
  {"Radio Swiss Pop", "http://stream.srg-ssr.ch/m/rsp/mp3_128"},
  {"ROCK ANTENNE 80er", "http://stream.rockantenne.de/80er-rock/stream/mp3"},
  {"Radio BOB! 80s Rock", "http://streams.radiobob.de/bob-80errock/mp3-192/mediaplayer"},
  {"80s80s Rock", "http://streams.80s80s.de/rock/mp3-192/"}
};
const int maxStations = sizeof(stationList) / sizeof(stationList[0]);
int currentStationIndex = 0;

// --- OBJEKTE ---
Audio audio;
U8G2_SH1107_128X128_F_HW_I2C u8g2(U8G2_R3, U8X8_PIN_NONE, OLED_SCL, OLED_SDA);
RotaryEncoder encoder(ENCODER_CLK, ENCODER_DT, RotaryEncoder::LatchMode::TWO03);

// --- VARIABLEN ---
int volume = 10;
String currentTitle = "Warte auf Titel...";
unsigned long lastDisplayUpdate = 0;

// --- DISPLAY UPDATE ---
void updateDisplay() {
  u8g2.clearBuffer();

  u8g2.setFont(u8g2_font_8x13B_tf);
  u8g2.drawUTF8(0, 25, stationList[currentStationIndex].name);
  u8g2.drawHLine(0, 28, 128);

  u8g2.setFont(u8g2_font_6x12_tf);
  if (currentTitle.length() > 20) {
    u8g2.drawUTF8(0, 45, currentTitle.substring(0, 20).c_str());
    if (currentTitle.length() > 40) {
      u8g2.drawUTF8(0, 60, currentTitle.substring(20, 40).c_str());
      u8g2.drawUTF8(0, 70, currentTitle.substring(40, 60).c_str());
    } else {
      u8g2.drawUTF8(0, 60, currentTitle.substring(20).c_str());
    }
  } else {
    u8g2.drawUTF8(0, 55, currentTitle.c_str());
  }

  u8g2.drawHLine(0, 105, 128);
  u8g2.setFont(u8g2_font_6x12_tf);

  char buf[40];
  int totalBuf = audio.getInBufferSize();
  int fillPercent = 0;
  if (totalBuf > 0) {
    fillPercent = (audio.inBufferFilled() * 100) / totalBuf;
  }
  if (fillPercent > 100) fillPercent = 100;

  snprintf(buf, sizeof(buf), "Vol:%d | Buf:%d%%", volume, fillPercent);
  u8g2.drawStr(0, 118, buf);

  u8g2.sendBuffer();
}

// --- NEUER ZENTRALER CALLBACK ---
// Ersetzt audio_info / audio_showstation / audio_showstreamtitle / audio_showicy
// Muss global definiert sein und exakt diese Signatur haben!
void my_audio_info(Audio::msg_t m) {
  switch (m.e) {
    case Audio::evt_streamtitle:
      Serial.printf("TITEL ERKANNT: %s\n", m.msg);
      currentTitle = String(m.msg);
      break;

    case Audio::evt_name:
      Serial.printf("Sender gefunden: %s\n", m.msg);
      currentTitle = "Stream laeuft...";
      break;

    case Audio::evt_bitrate:
      Serial.printf("Bitrate: %s\n", m.msg);
      break;

    case Audio::evt_info:
      Serial.printf("Audio-Info: %s\n", m.msg);
      break;

    case Audio::evt_icydescription:
      Serial.printf("ICY-Description: %s\n", m.msg);
      break;

    case Audio::evt_icyurl:
      Serial.printf("ICY-URL: %s\n", m.msg);
      break;

    case Audio::evt_lasthost:
      Serial.printf("Letzter Host: %s\n", m.msg);
      break;

    case Audio::evt_eof:
      Serial.println("Stream EOF");
      break;

    default:
      // Optional: Alle anderen Events zum Debuggen ausgeben
      // Serial.printf("Event [%d]: %s\n", m.e, m.msg ? m.msg : "(null)");
      break;
  }
}

// --- SETUP ---
void setup() {
  Serial.begin(115200);
  delay(2000);

  Serial.println("\n--- PRILCHEN WEBRADIO V4 START ---");

  // 0. WICHTIG: Callback registrieren BEVOR Audio benutzt wird
  Audio::audio_info_callback = my_audio_info;
  Serial.println("Metadaten-Callback registriert.");

  // 1. Hardware Check
  Serial.printf("Chip Modell: %s\n", ESP.getChipModel());
  Serial.printf("Flash Größe: %d MB\n", ESP.getFlashChipSize() / (1024 * 1024));
  if (psramFound()) {
    Serial.printf("PSRAM erkannt: %d MB\n", ESP.getPsramSize() / (1024 * 1024));
  } else {
    Serial.println("ACHTUNG: Kein PSRAM erkannt! Bitte PSRAM in IDE aktivieren.");
  }

  // 2. I2C & Display
  Wire.begin(OLED_SDA, OLED_SCL);
  Wire.setClock(400000);
  u8g2.begin();

  u8g2.clearBuffer();
  u8g2.setFont(u8g2_font_8x13B_tf);
  u8g2.drawStr(25, 45, "Webradio");
  u8g2.drawStr(10, 65, "Prilchen LABS");
  u8g2.setFont(u8g2_font_6x12_tf);
  u8g2.drawStr(0, 100, "WLAN verbinden...");
  u8g2.sendBuffer();

  // 3. Encoder Button
  pinMode(ENCODER_SW, INPUT_PULLUP);

  // 4. WiFi
  WiFi.begin(WIFI_SSID, WIFI_PASS);
  int wifiTimeout = 0;
  while (WiFi.status() != WL_CONNECTED && wifiTimeout < 40) {
    delay(250);
    Serial.print(".");
    wifiTimeout++;
  }

  u8g2.clearBuffer();
  u8g2.setFont(u8g2_font_8x13B_tf);
  u8g2.drawStr(25, 45, "Webradio");
  u8g2.drawStr(10, 65, "Prilchen LABS");
  u8g2.setFont(u8g2_font_6x12_tf);

  if (WiFi.status() == WL_CONNECTED) {
    Serial.println("\nWiFi Verbunden! IP: " + WiFi.localIP().toString());
    u8g2.drawStr(0, 100, "WLAN Erfolgreich!");
    u8g2.drawStr(0, 110, WiFi.localIP().toString().c_str());
  } else {
    Serial.println("\nWiFi Fehler!");
    u8g2.drawStr(0, 80, "WLAN Fehler!");
    u8g2.drawStr(0, 100, "Bitte Reset druecken");
  }
  u8g2.sendBuffer();
  delay(3000);

  // 5. Audio Init
  audio.setPinout(I2S_BCK, I2S_WS, I2S_DOUT);

  if (psramFound()) {
    Serial.println("PSRAM aktiv: Audio-Bibliothek nutzt erweiterten Puffer automatisch.");
  }

  audio.setVolume(volume);

  if (WiFi.status() == WL_CONNECTED) {
    Serial.println("Verbinde zu: " + String(stationList[currentStationIndex].name));
    audio.connecttohost(stationList[currentStationIndex].url);
  }
}

// --- LOOP ---
void loop() {
  audio.loop();
  encoder.tick();

  if (millis() - lastDisplayUpdate > 1000) {
    updateDisplay();
    lastDisplayUpdate = millis();
  }

  // Lautstärke
  static int lastPos = 0;
  int newPos = encoder.getPosition();
  if (lastPos != newPos) {
    if (newPos > lastPos) volume = min(volume + 1, 21);
    else volume = max(volume - 1, 0);

    audio.setVolume(volume);
    lastPos = newPos;
    updateDisplay();
  }

  // Senderwechsel
  static bool lastBtnState = HIGH;
  bool currentBtnState = digitalRead(ENCODER_SW);
  if (lastBtnState == HIGH && currentBtnState == LOW) {
    delay(50);
    if (digitalRead(ENCODER_SW) == LOW) {
      currentStationIndex++;
      if (currentStationIndex >= maxStations) currentStationIndex = 0;

      Serial.println("Wechsle Sender zu: " + String(stationList[currentStationIndex].name));

      currentTitle = "Lade Sender...";

      u8g2.clearBuffer();
      u8g2.setFont(u8g2_font_8x13B_tf);
      u8g2.drawStr(0, 60, "Lade Sender...");
      u8g2.drawUTF8(0, 80, stationList[currentStationIndex].name);
      u8g2.sendBuffer();

      audio.connecttohost(stationList[currentStationIndex].url);
    }
  }
  lastBtnState = currentBtnState;
}
